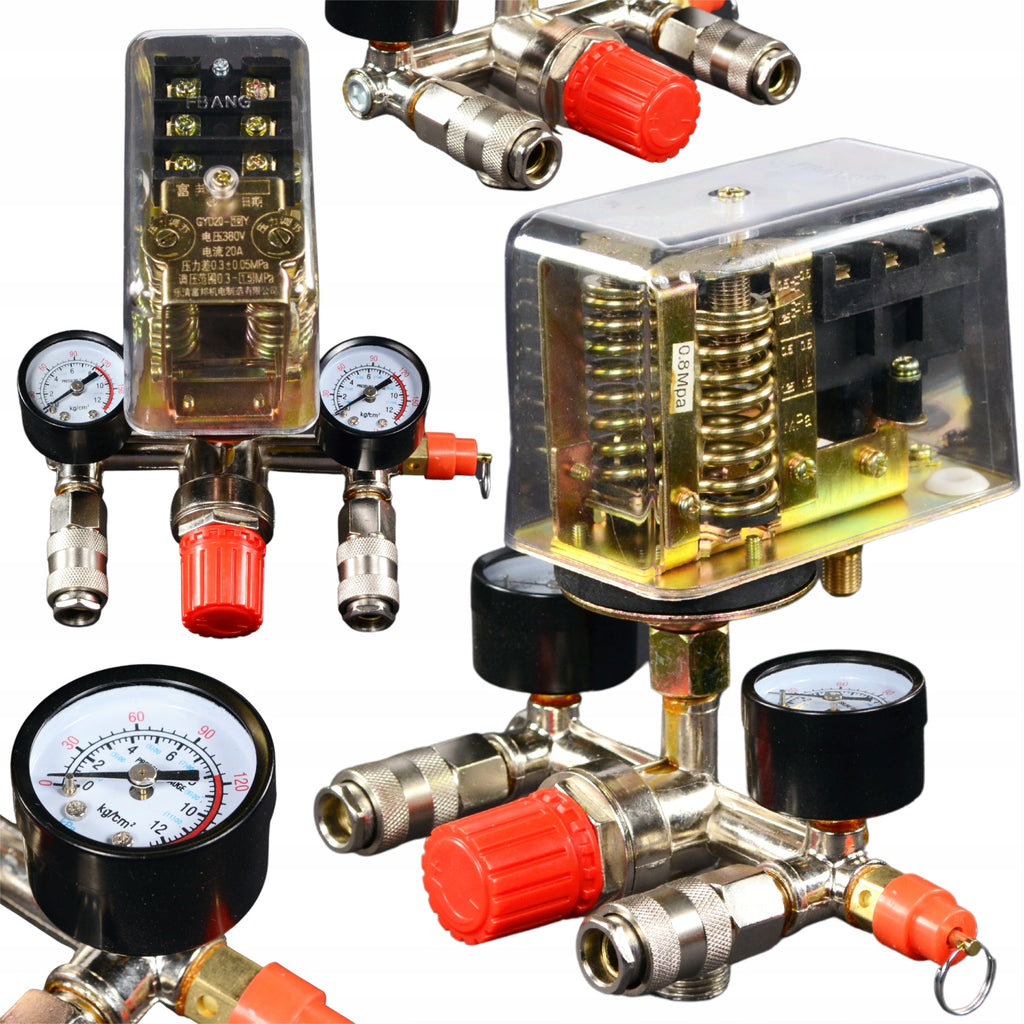

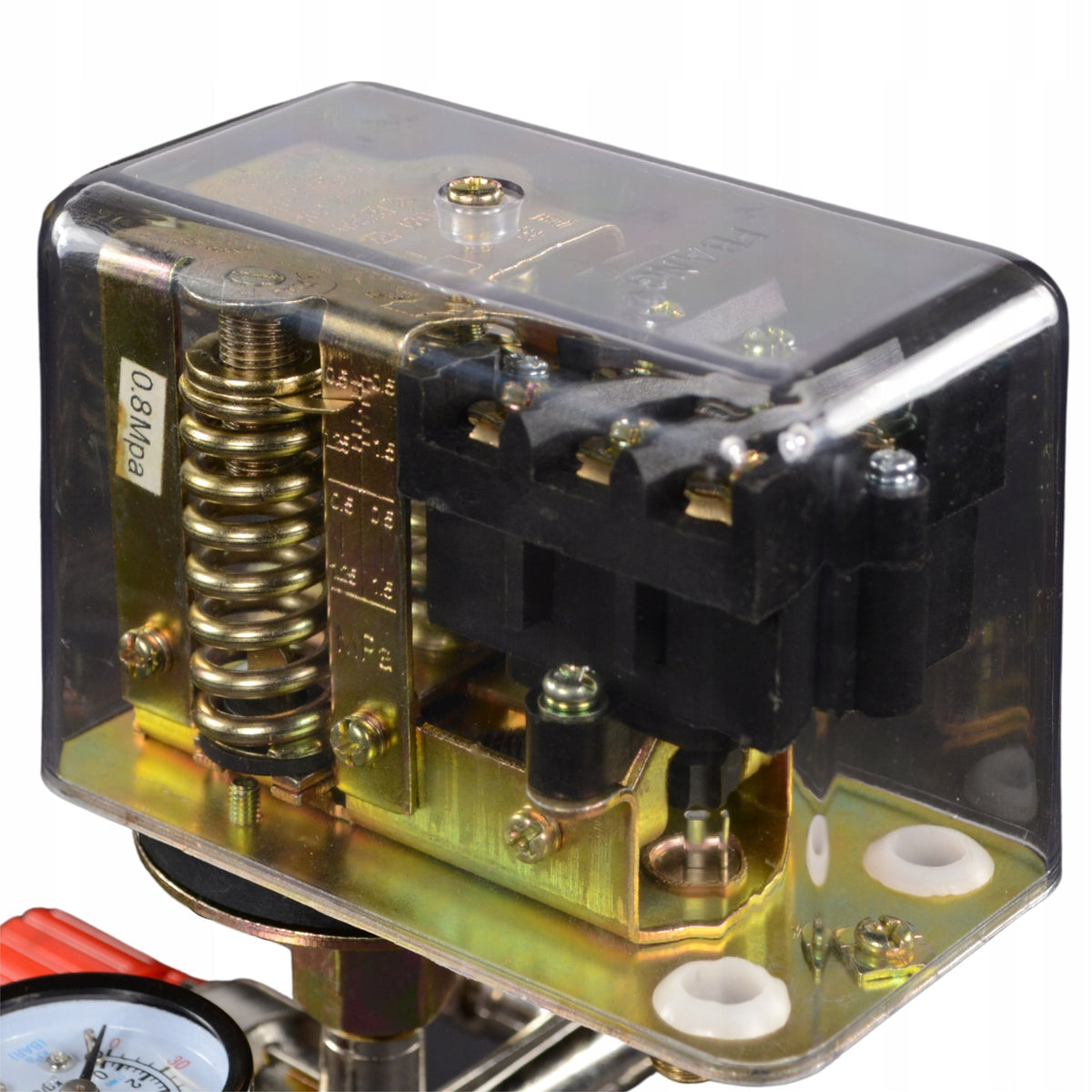

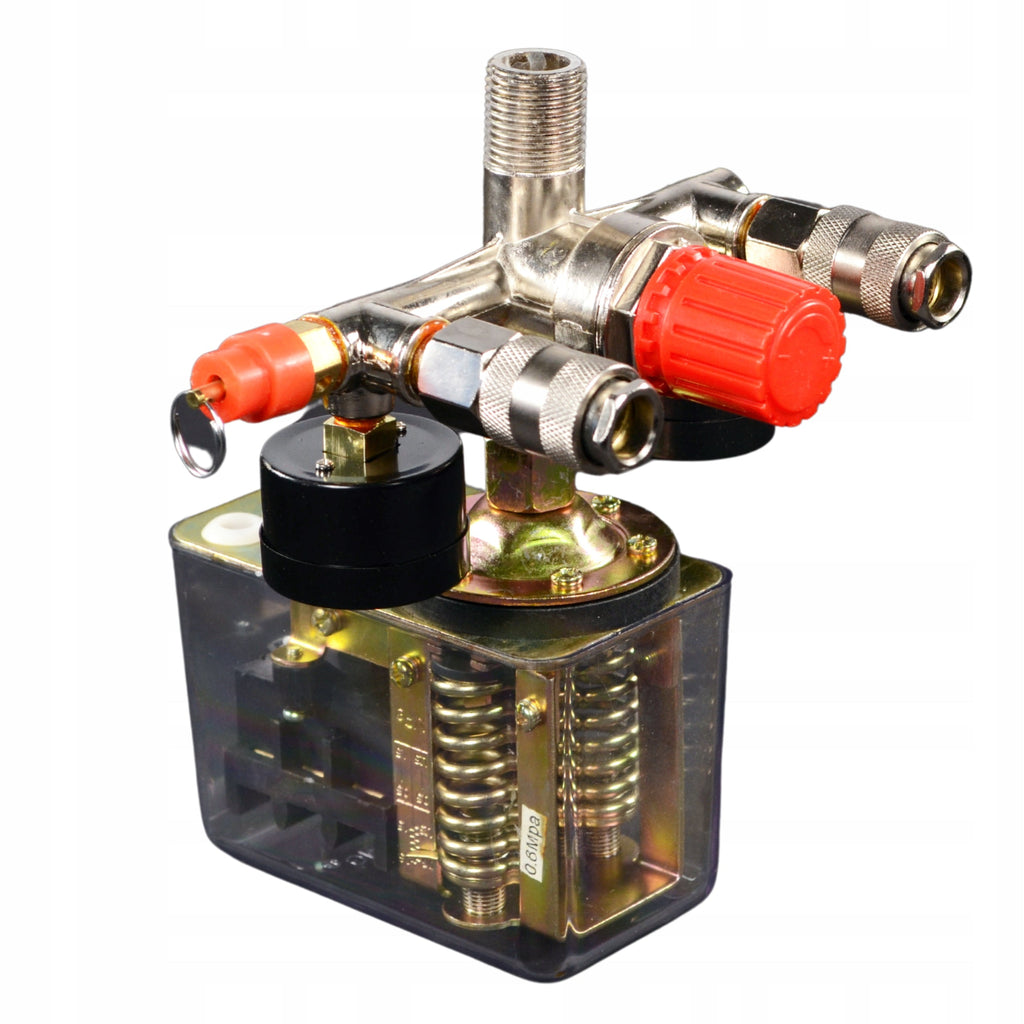

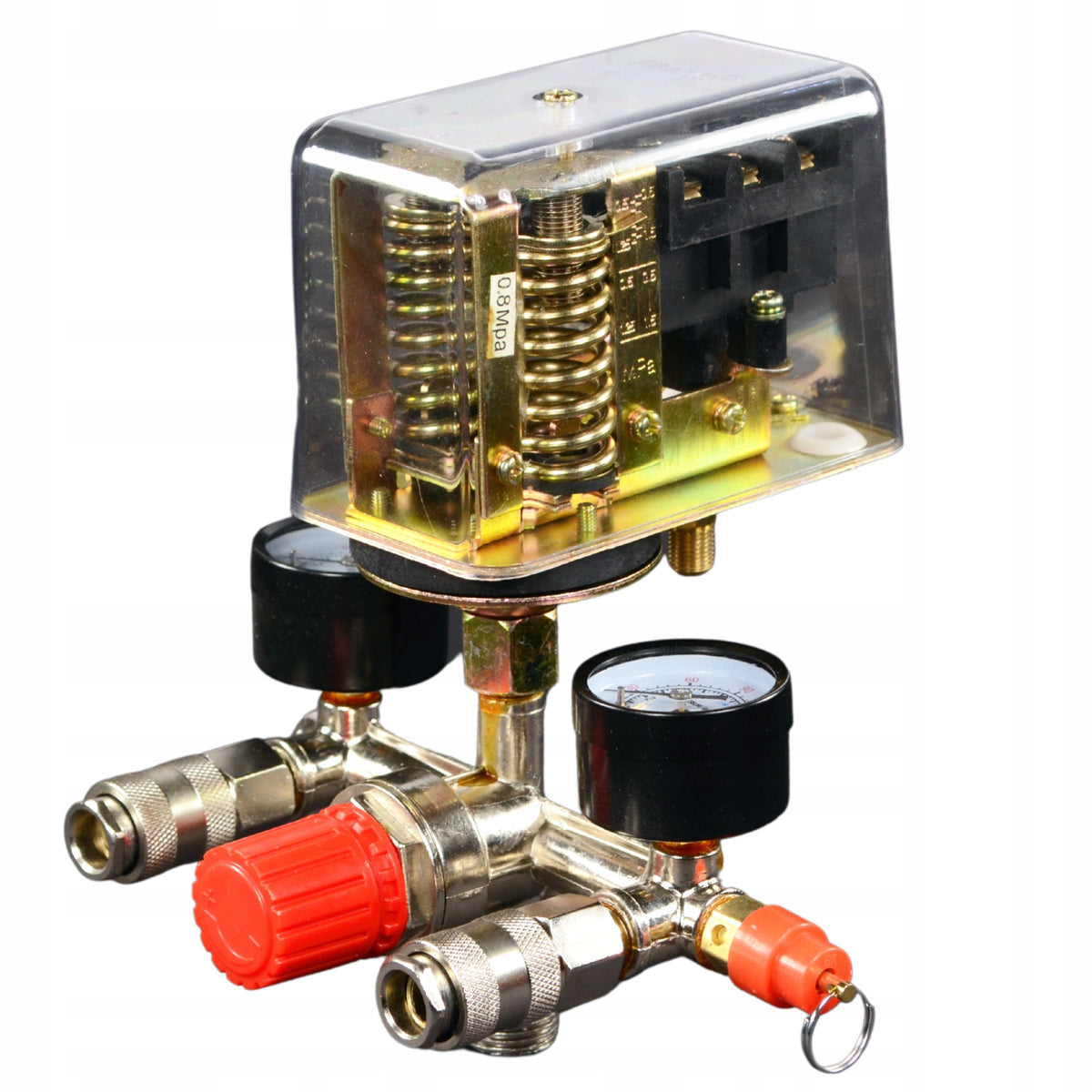

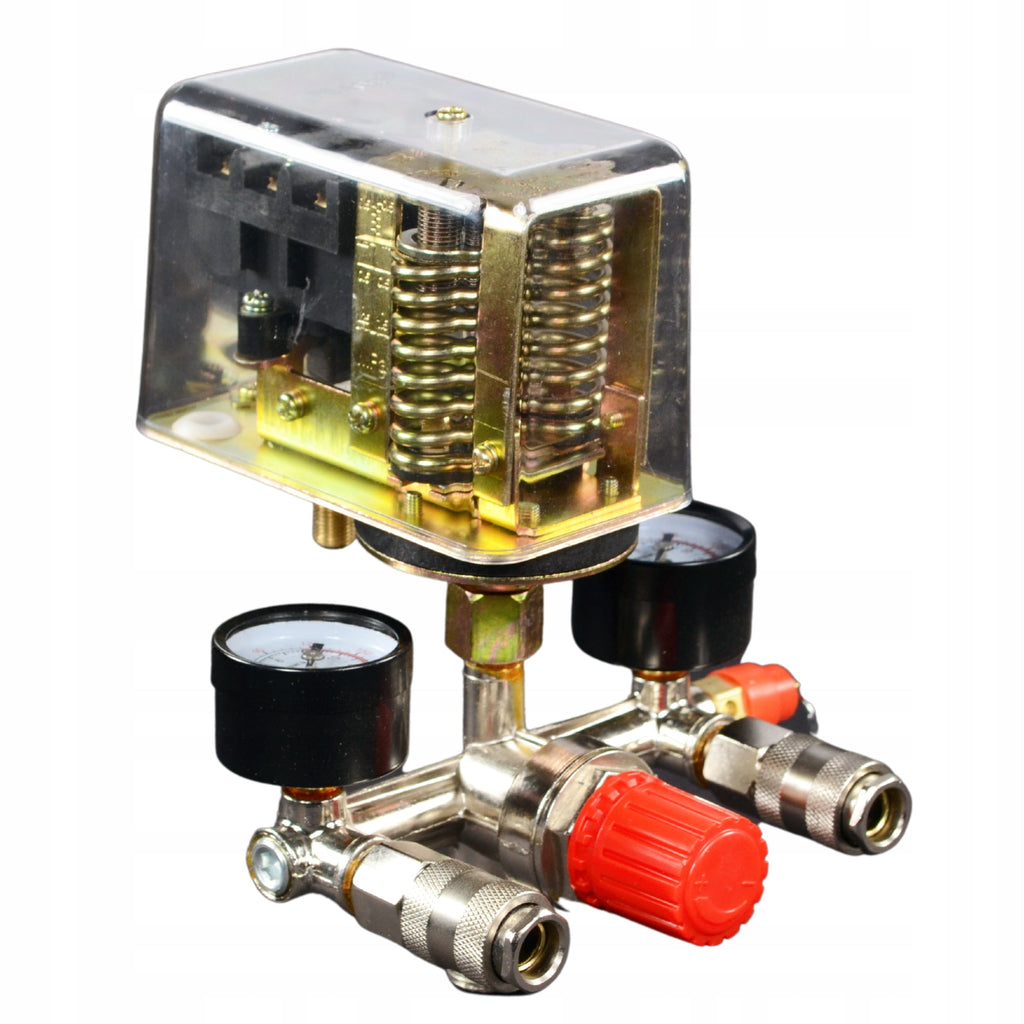

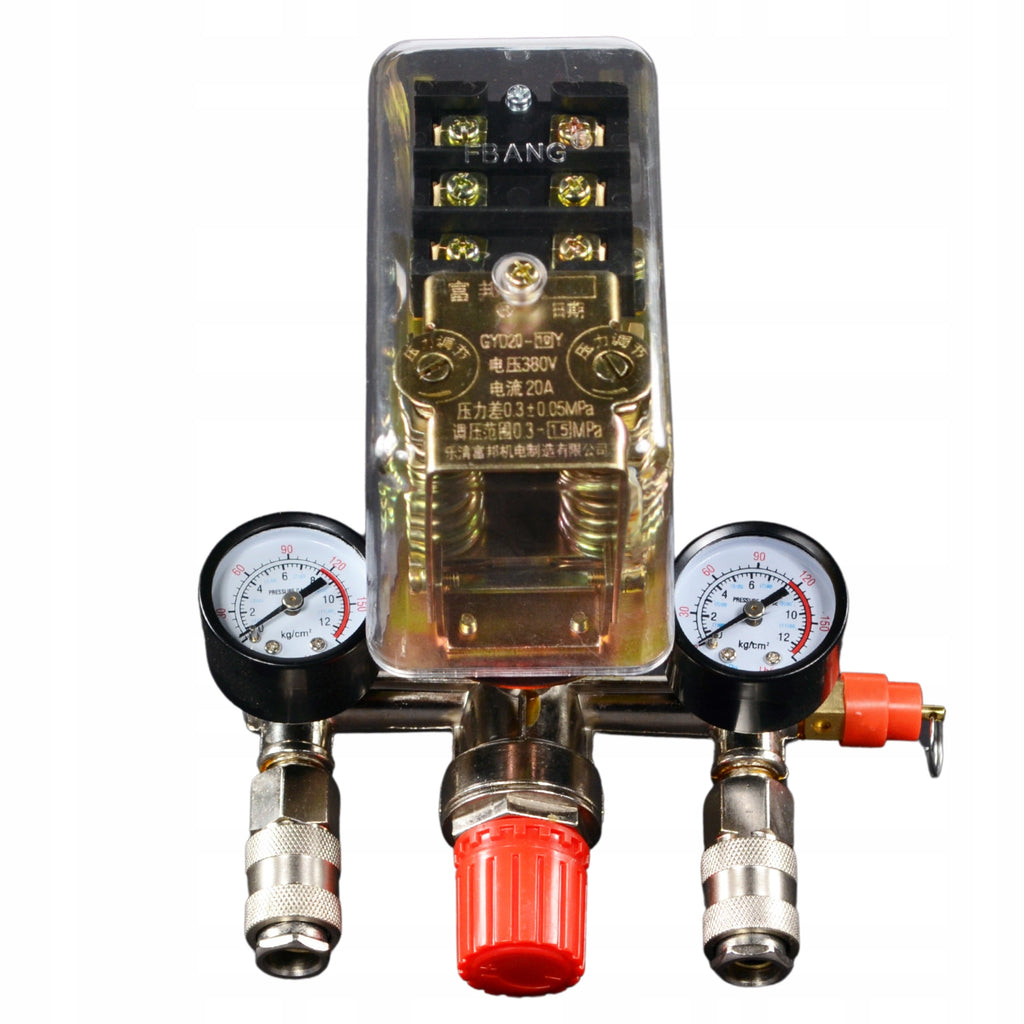

Compressor pressure switch 380/400 V 16 A 10682

Overview

The compressor pressure switch, or pressostat, is designed for automatic control of compressor operation. The device switches the compressor on at 6 bar and off at 8 bar.

Technical specifications

• Supply voltage: 380/400 V
• Current: 16 A
• Switch-on pressure: 6 bar
• Switch-off pressure: 8 bar
• Adjustable switch-off pressure: up to 12 bar
• Safety valve: set to 8.5 bar, adjustable up to 12.5 bar
• Tank connection: 1/2-inch thread, thread outer diameter approximately 21 mm

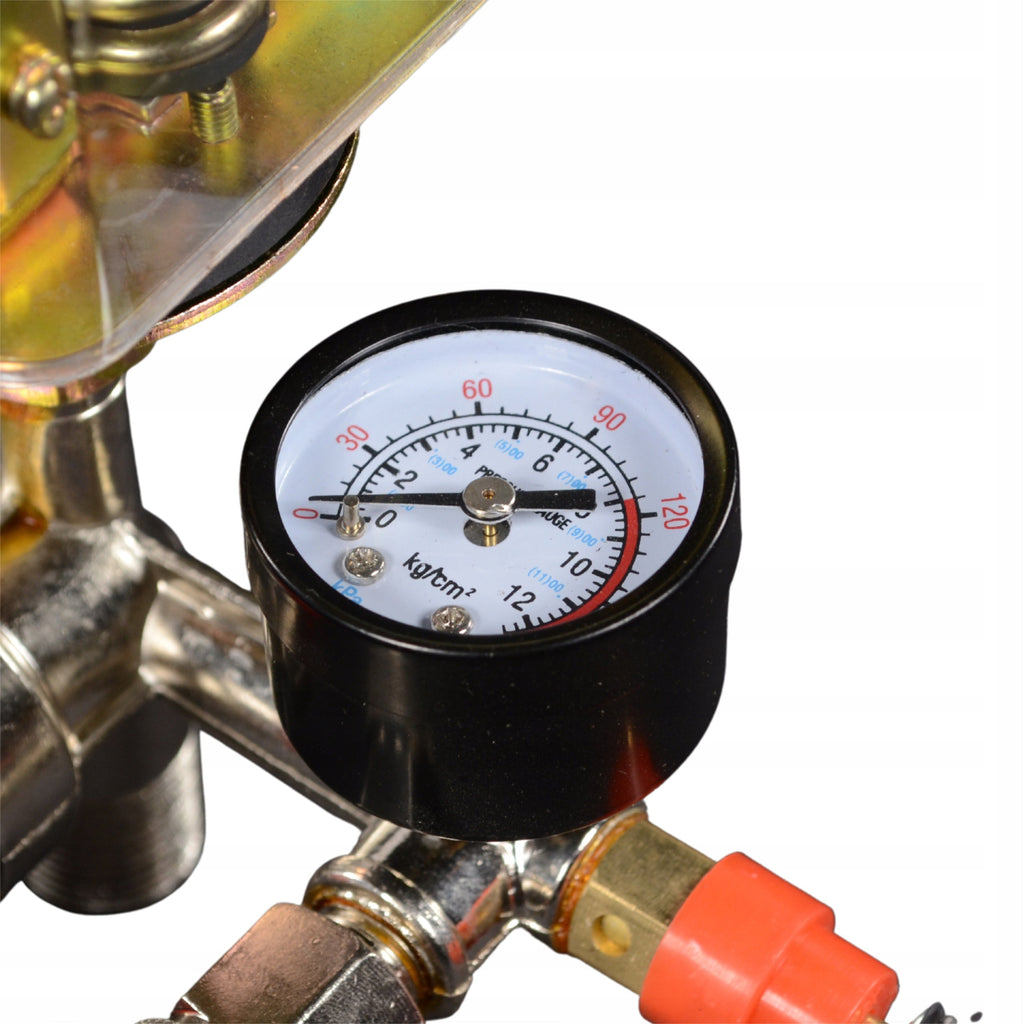

• 2 pressure gauges
• 2 quick connectors
• Integrated decompressor and pressure regulator
• Copper contacts
