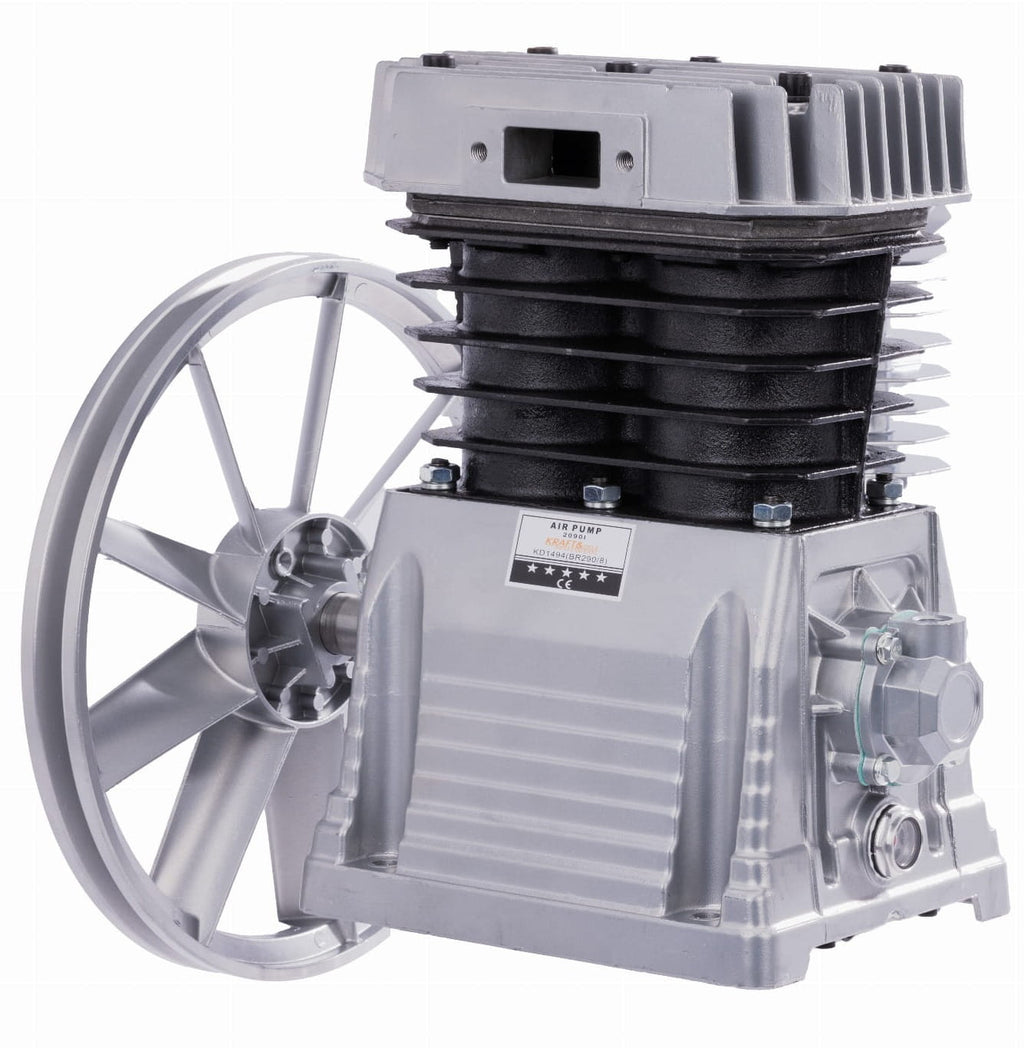

KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 1

KRAFT&DELE Two-Cylinder Air Compressor Pump for 5.5 kW Drive 820 l/min KD1494

€243,55
Liigu tooteinfo juurde
KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 1
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 1
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 2
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 3
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 4
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 5
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 6
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 7
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 8
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 9
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 1
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 2
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 3
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 4
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 5
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 6
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 7
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 8
  • KRAFT&DELE kahe silindriga õhukompressori pump 5,5 kW ajamile 820 l/min KD1494 – pilt 9
KRAFT&DELE Two-Cylinder Air Compressor Pump for 5.5 kW Drive 820 l/min KD1494

KRAFT&DELE Two-Cylinder Air Compressor Pump for 5.5 kW Drive 820 l/min KD1494

Hind km-ga: €243,55 Hind km-ita: €196,41

Overview

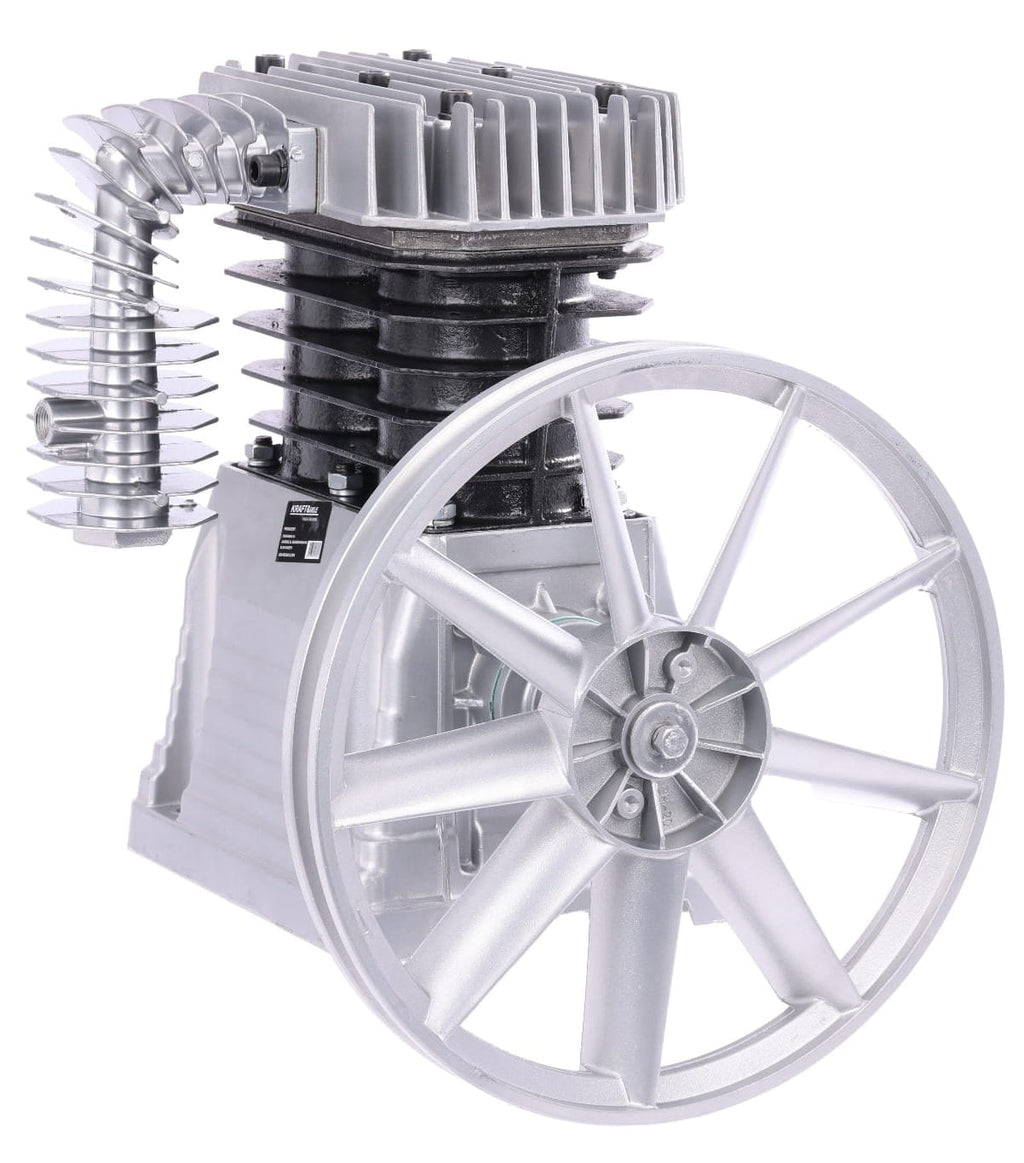

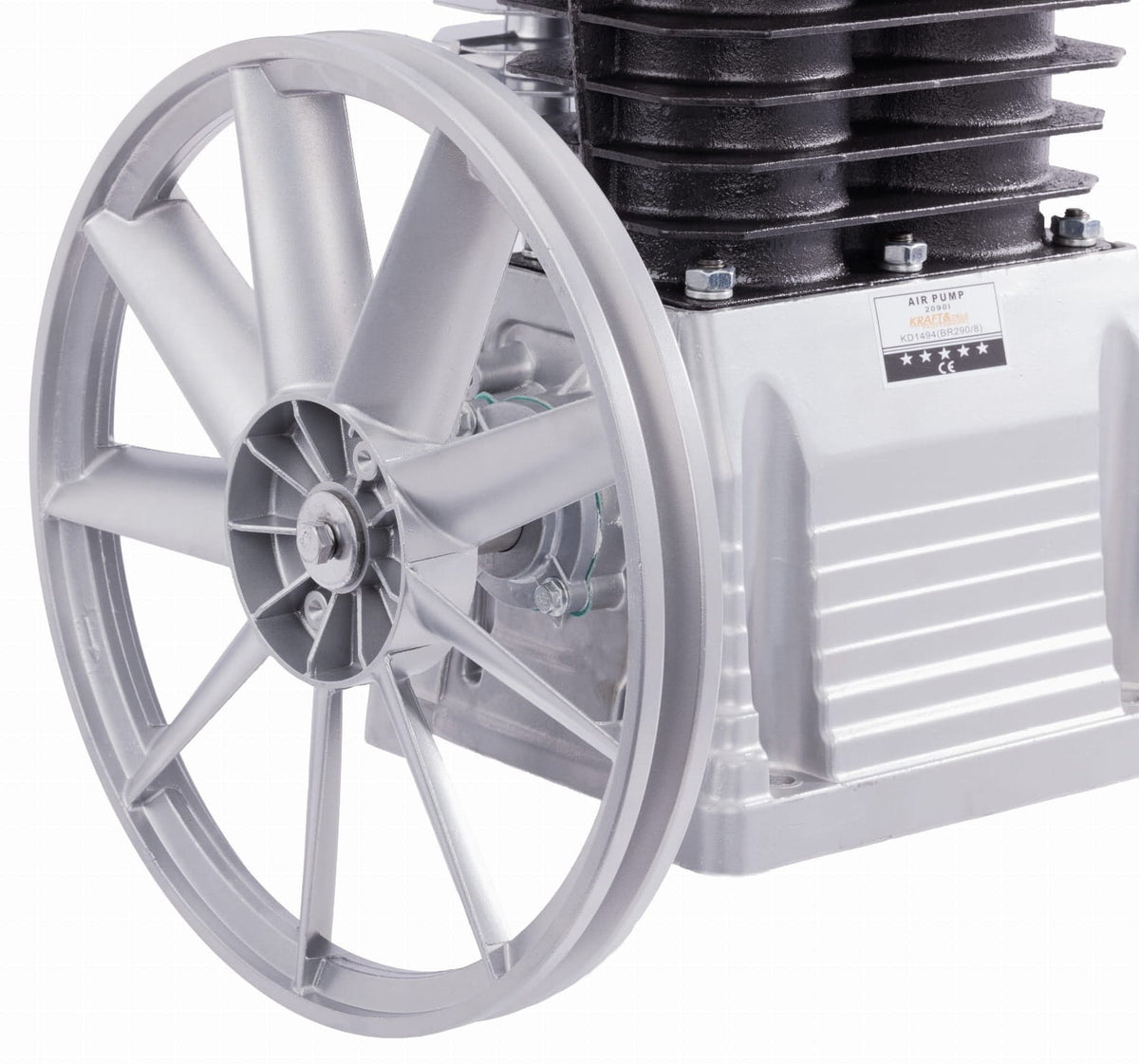

The KRAFT&DELE KD1494 is a twin-cylinder air compressor pump designed for workshop, home, and industrial use. The pump features a low rotational speed and a specially shaped pulley that acts as a fan to improve cooling.

Technical Specifications

  • Manufacturer: KRAFT&DELE
  • Model: KD1494
  • Type: Air compressor pump
  • Capacity: 820 l/min at 8 bar
  • Number of cylinders: 2
  • Cylinder diameter: 90 mm
  • Recommended drive power: 5.5 kW / 7.5 hp
  • Rotational speed: 950 rpm
  • Pulley diameter: 350 mm
  • V-belt groove width: 6–16 mm
  • Weight: 27 kg

Included in the set

  • Air compressor pump KD1494
  • Filter
  • Original packaging
  • Polish user manual

Construction

The aluminum and cast iron construction, along with two large-diameter pistons, are designed to ensure high efficiency.
